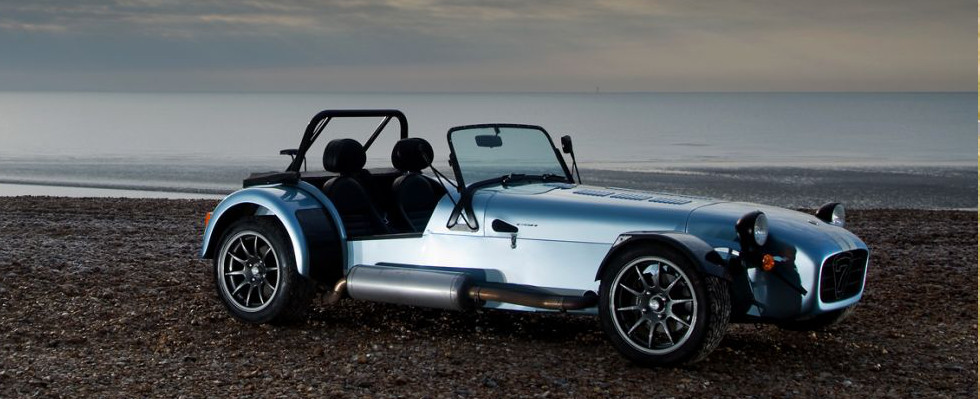

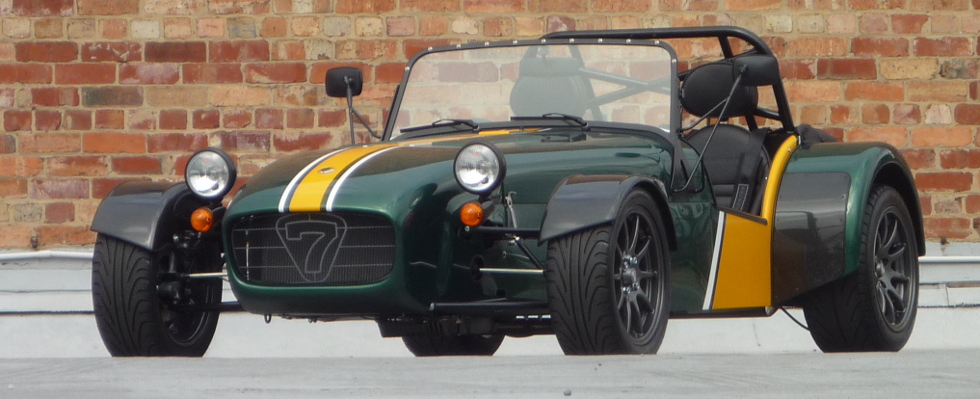

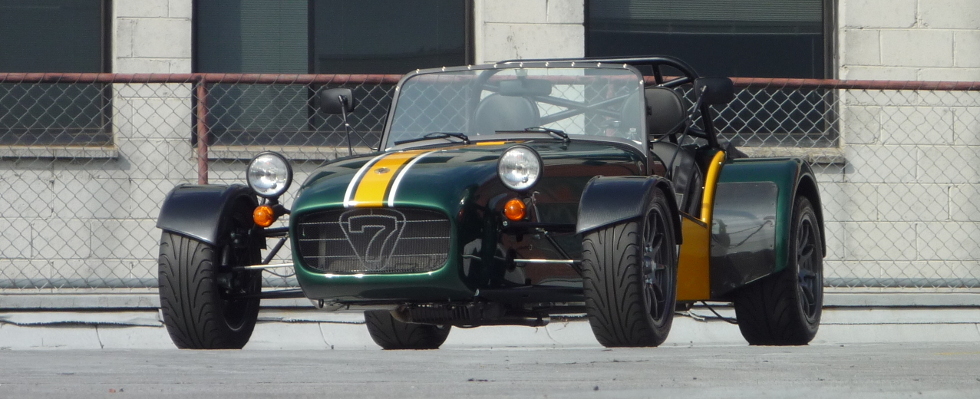

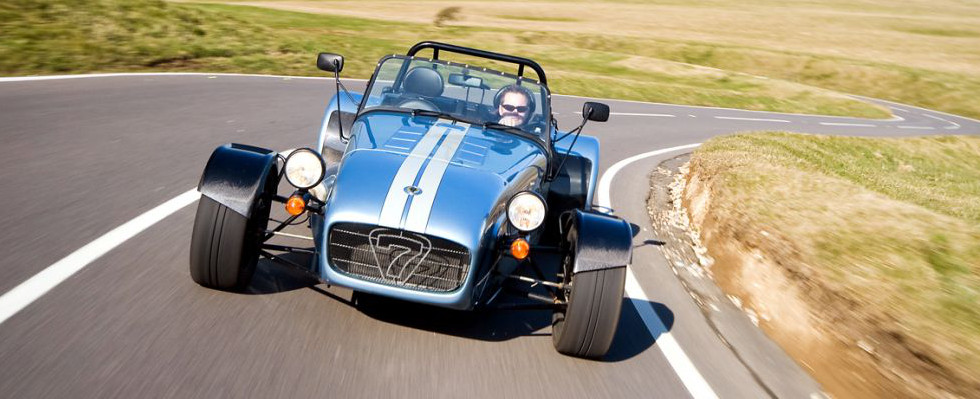

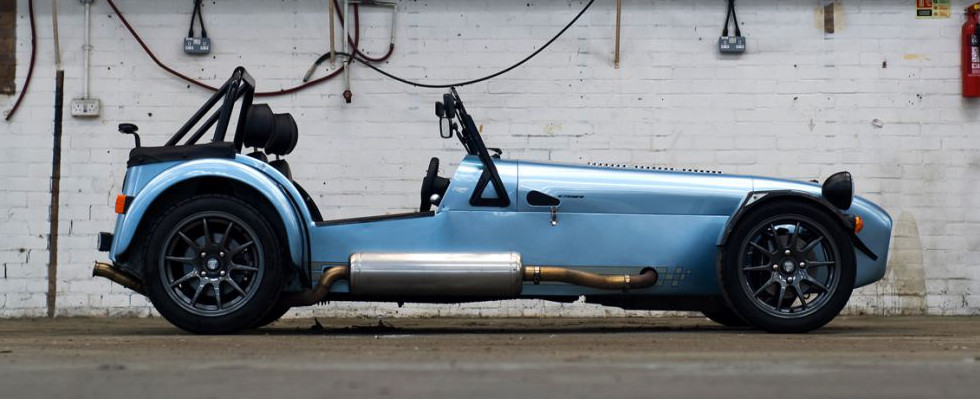

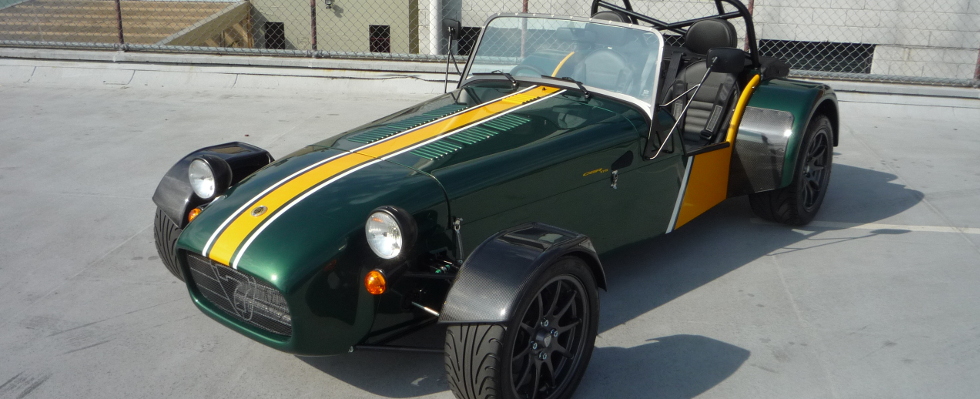

Seven CSR

Sitting in the middle of the Caterham Seven range, the CSR offers the perfect balance between a fast road car and a race car.

Benefiting from the fully independent rear suspension, and inboard F1-style, front suspension plus aerodynamic and chassis enhancements, the CSR takes the Seven philosophy to the next level. The CSR combines these sophisticated attributes with the Caterham-Ford 2.0 litre motor, providing outstanding overall performance. This has created a car that delivers huge pleasure to both performance orientated or touring drivers alike.

In addition to the standard features of the Seven 275, the CSR also offers:

  • A 2.0 litre 127 kW Ford Duratec engine, similar to that fitted to a Ford Focus
  • Inboard front suspension and fully independent rear wishbone
  • Larger brakes
  • Aerodynamic front guards
  • Adjustable front anti-roll bar
  • 15” alloy wheels shod with Avon CR500 low profile tyres



2.0 LITRE
CATERHAM-FORD DURATEC		 0-100 KPH
5.5
SECONDS		 TOP SPEED
208 KPH		 127/170
kW/BHP



SPECIFICATIONS

Standard

  • Caterham tuned 127 Kw/170 bhp Ford Duratec 1999cc, four cylinder, naturally aspirated
  • 5-speed gearbox
  • Aluminum body with composite panels

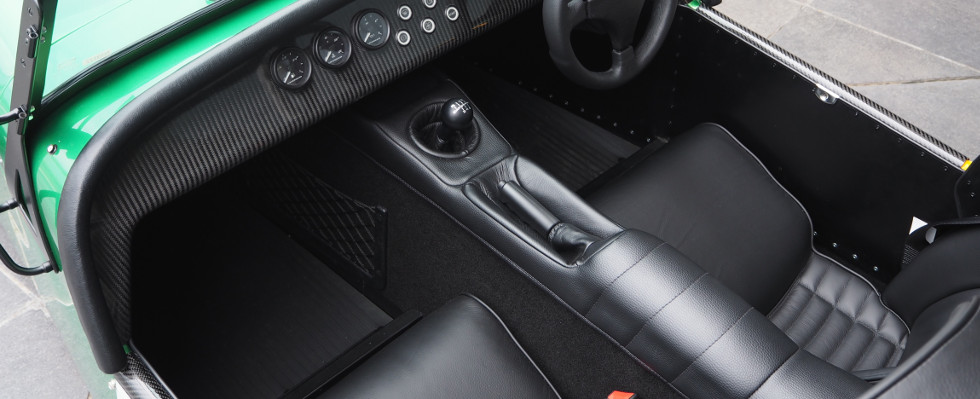

  • Black cloth seats
  • Motolita steering wheel
  • Suspension front - Unequal length double wishbones, anti-roll bar, coil springs over Caterham Bilstein road dampers
  • Suspension rear - De-dion semi-independent suspension with radius arms and A-frame linkage; progressive coil springs over Caterham Bilstein road dampers
  • Steering: Rack and pinion
  • 15 x 6.5" classic alloy wheels with 195/45x15 VR tyres front
  • 15 x 9.0” classic allow wheels with 245/40x15 VR tyres rear
  • Inertia reel lap + diagonal seat belts

Optional

  • 6-speed gearbox
  • Limited slip differential
  • Dry sump oil system

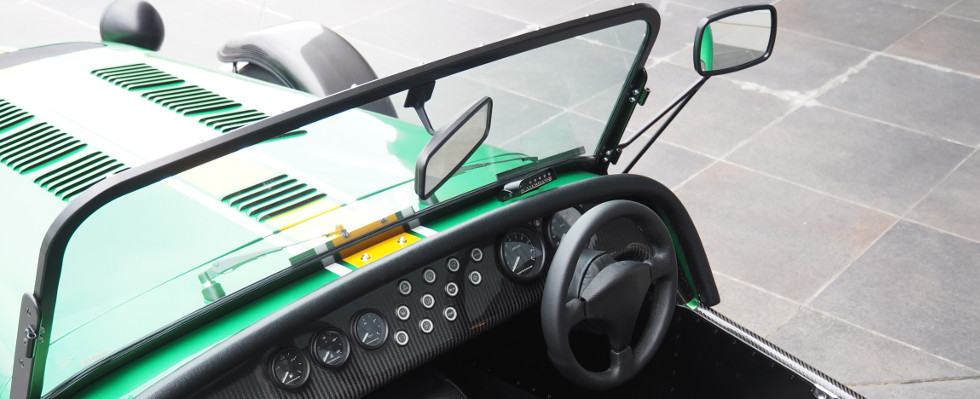

  • Carbon-fibre dashboard
  • Full weather equipment, including soft top and side screen doors
  • 12V socket
  • Lowered floors (driver and passenger)
  • Race 4 point harnesses
  • Track day roll over bar
  • Plumbed-in fire extinguisher
  • Battery master cut-off switch
  • Carbon fibre front and/or read guards
  • Black pack

Technical Specification

  • Caterham Seven CSR
  • Engine: Caterham tuned Ford Duratec 1999cc, 4-cylinder, naturally aspirated
  • Max Power (kW @rpm): 127@ 7,300rpm
  • Max Torque (Nm/rpm): 177 @ 6,000rpm
  • Weight: 700kg
  • 0-100 kph: 5.0 seconds
  • Top speed: 208 kph

Paint Options

As standard all Caterhams are supplied unpainted in alumininum finish with coloured fibre glass wings and nose. For an additional fee your Caterham can be painted in one of our standard finishes or request in any colour you wish.
